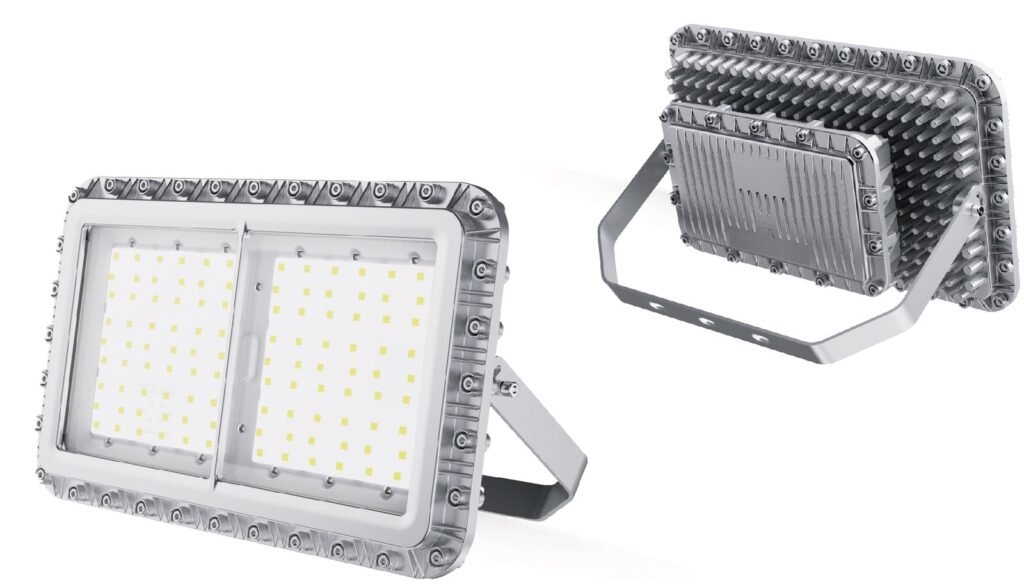

Mars — LED Explosion-proof Floodlight

Overview

Mars is a column-heat-sink explosion-proof floodlight for the toughest outdoor environments. The light source and the driver live in separate sealed compartments, so a driver failure never exposes the optical chamber. A 0–180° bracket allows precise aiming on high masts and tank farms.

Where it is used

• Petroleum, chemical and metallurgy plants
• Oil depots, refineries and tank farms
• Ports, terminals and shipbuilding yards
• Aviation, military and pharmaceutical facilities
• Zone 1 & 2 gas and Zone 21 & 22 dust atmospheres

Technical specification

Item	Mars-A	Mars-B
Rated power	80 W – 150 W
Input voltage	90 – 305 V AC
Luminous efficacy	≥ 130 lm/W
Power factor	≥ 0.95
CCT	3000 K – 6000 K
CRI	Ra > 70
Beam angle	60° / 110°
Working temperature	−35 °C … +50 °C
Ingress protection	IP67
Impact rating	IK08
LED lifetime	> 50,000 h
Ex marking	Ex db IIB T6 Gb
Zones	1, 2, 21, 22
Cable entry	M20 × 1.5, Ø 9–14 mm
Weight	10.5 kg
Mounting	Ceiling / wall / bracket

Certification

TÜV, ATEX, IECEx, CE, RoHS and PCEC. Temperature classes T1–T6, corrosion-resistance class C4-M.

Built-in protection

• Short-circuit and over-voltage protection on the driver board
• IP67 silicone sealing on every gasket face
• Wide-voltage 90–305 V constant-current driver for unstable grids
• 0–180° bracket angle adjustment
