New Kingkong — LED High Bay Explosion-proof Light
Explosion-proof Lighting

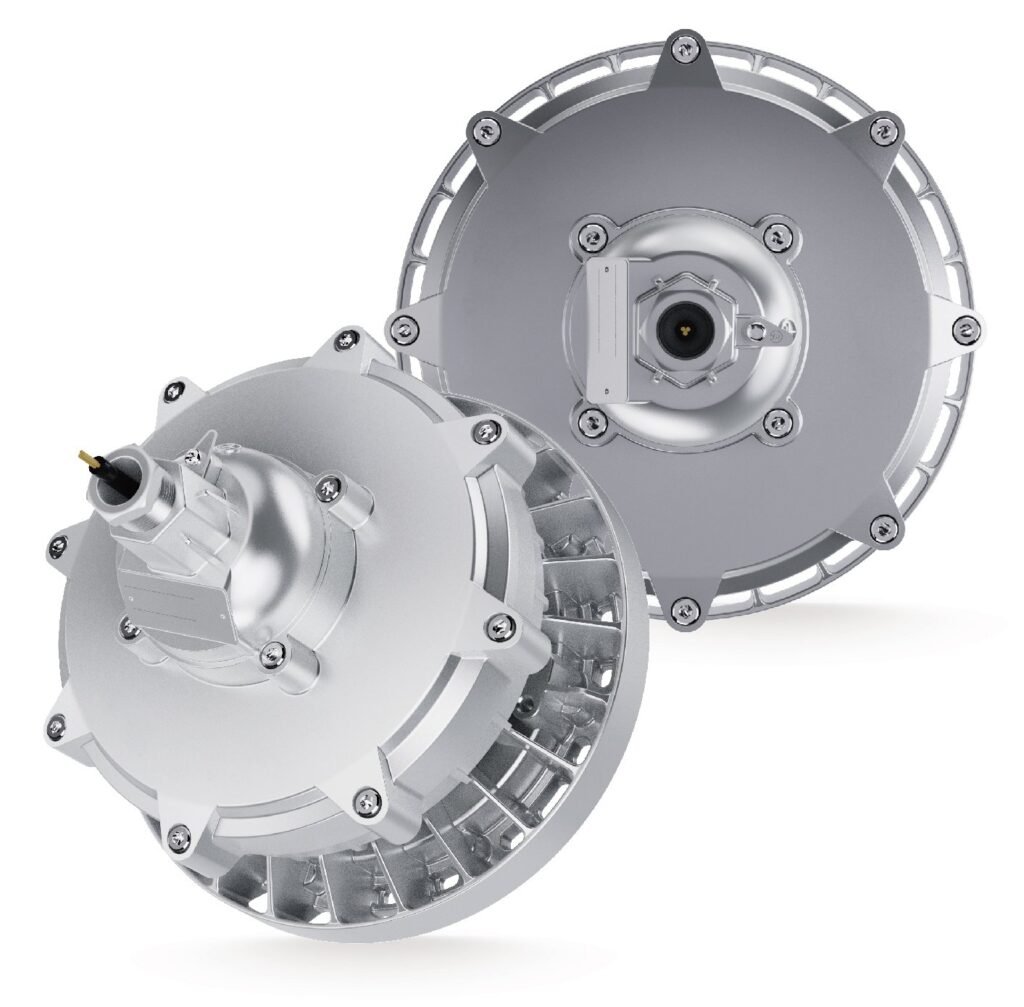

New Kingkong — LED High Bay Explosion-proof Light

20–300 W flameproof high bay with 3D heat-sink housing and interchangeable reflector cups.

  • IP65+
  • 50
  • 000 h
  • IK08
  • CRI>70
Request a Quotation

Overview

New Kingkong brings flameproof construction to the high bay. The ADC12 aluminium housing has a 3D heat-dissipation structure with more than 50 % extra surface area, and the light source, driver and wiring compartments are individually sealed modules.

Where it is used

  • Power plants, metallurgy and steel works
  • Petrochemical and chemical process buildings
  • Aviation hangars and shipyards
  • Tunnels, stations and large industrial venues
  • Zone 1 & 2 gas, Zone 21 & 22 dust

Technical specification

ItemValue
Rated power20–30 W / 70–120 W / 150–200 W / 210–300 W
Input voltageAC 220 V
Luminous efficacy≥ 120 lm/W
Power factor≥ 0.95
CCT3000 K / 4000 K / 5000 K / 6000 K
CRIRa > 70
Beam angle60° / 90° / 120° reflector cups
Working temperature−35 °C … +50 °C
Ingress protectionIP66
Impact ratingIK08
LED lifetime> 50,000 h
Ex markingEx db IIC T6 Gb / Ex tb IIC T80 °C Db
Zones1, 2, 21, 22
Body diameterØ 280 / 300 / 310 / 350 mm
Weight4.8 / 5.7 / 8.5 / 10.5 kg
Cable entryNPT 3/4 (G3/4)
MountingWall, pipe-suspended or pole

Optics and durability

  • Interchangeable 60° / 90° / 120° reflector cups for warehouse, hall or stadium optics
  • 92 %-transmission tempered glass, five times stronger than ordinary glass
  • IP66 housing tested against heavy rain and sandstorm
  • Separate sealed modules for light source, driver and cable exit
