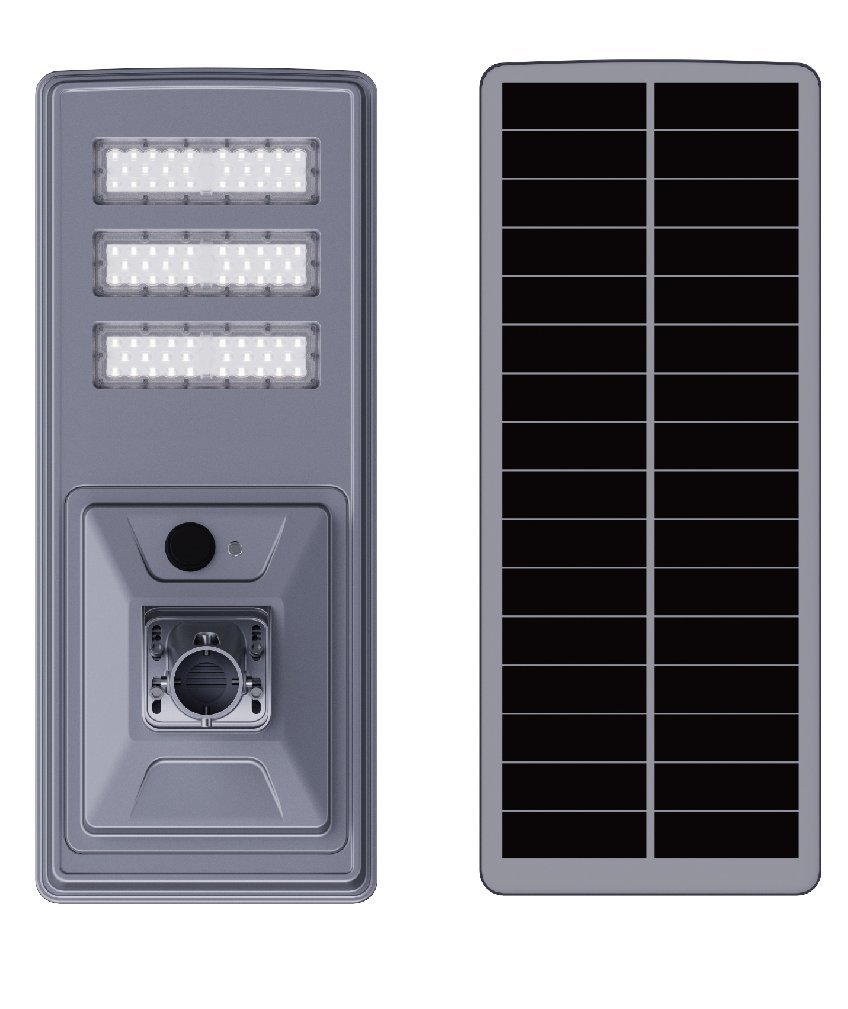

Steelman — All-in-One Solar Street Light

Overview

Steelman combines the solar panel, LiFePO4 battery, LED source and intelligent controller in a single die-cast body. There is no cabling between panel and luminaire, no trenching and no grid connection — installation is one bracket and two bolts.

Where it is used

• Residential footpaths and courtyards (6 m)
• Municipal cycle lanes and parks (6–8 m)
• Main roads and large plazas (8–12 m)
• Off-grid villages, islands and construction sites

Technical specification

Item	A	B	C	D
Rated power	30 W
System voltage	12.8 V
Solar panel	18 V / 80 W
Battery	LiFePO4, BMS protected
LED source	LUMILEDS / CREE
Luminous efficacy	180 lm/W
CCT	3000 K – 6000 K
Working temperature	−35 °C … +50 °C
Ingress / impact	IP65 / IK08
LED lifetime	> 50,000 h
Mounting height	5 – 6 m
Body length	1025 mm

Battery and charging

• LiFePO4 chemistry — more than 2,000 cycles, depth of discharge ≥ 95 %
• Built-in BMS protecting against over-charge, over-discharge, temperature and current
• A-grade monocrystalline cells laminated in EVA and tempered glass
• Bifacial module option increases generation by 10–20 %

Operating modes

• Motion sensor 1 — 40 % to 100 % on detection
• Motion sensor 2 (default) — 20 % to 80 % on detection
• Night bird — time-based schedule 100 % → 70 % → 50 % → 20 %
• Early bird — pre-dawn boost for the last hours before sunrise
